Laboratory Fume Hood Manufacturer & Supplier

A well-designed laboratory plays an important role in maintaining a safe, organized, and productive working environment. Labofab provides high-quality Laboratory Fume Hoods that help laboratories manage fumes, vapours, and airborne contaminants generated during chemical and research processes.

As an experienced Laboratory Fume Hood Manufacturer in India, we offer practical and customizable solutions for pharmaceutical, chemical, research, healthcare, educational, and industrial laboratories. Our range includes Benchtop Fume Hoods, Walk-in Fume Hoods, and Low Bench Fume Hoods, designed to suit different laboratory layouts, working conditions, and equipment requirements.

  • Efficient Air Extraction: An exhaust fan draws air and airborne contaminants from the laboratory fume hood to maintain a safer working environment.
  • Safe Contaminant Removal: Contaminated air is captured through connected ductwork and exhausted safely to the atmosphere, helping maintain required safety and performance standards.
  • Movable Sash & Internal Baffle: A typical Laboratory Fume Hood features a movable front sash and interior baffle. The sash provides a protective barrier between the user and the experiment while supporting controlled airflow.
  •  Optimized Airflow: The airfoil design around the hood face helps create smooth and even airflow into the hood while reducing turbulence.

High-quality furniture-grade GPSP with ‘O’ spangle finish. Iron used conforms to industry standards.

Types of Fume Hood

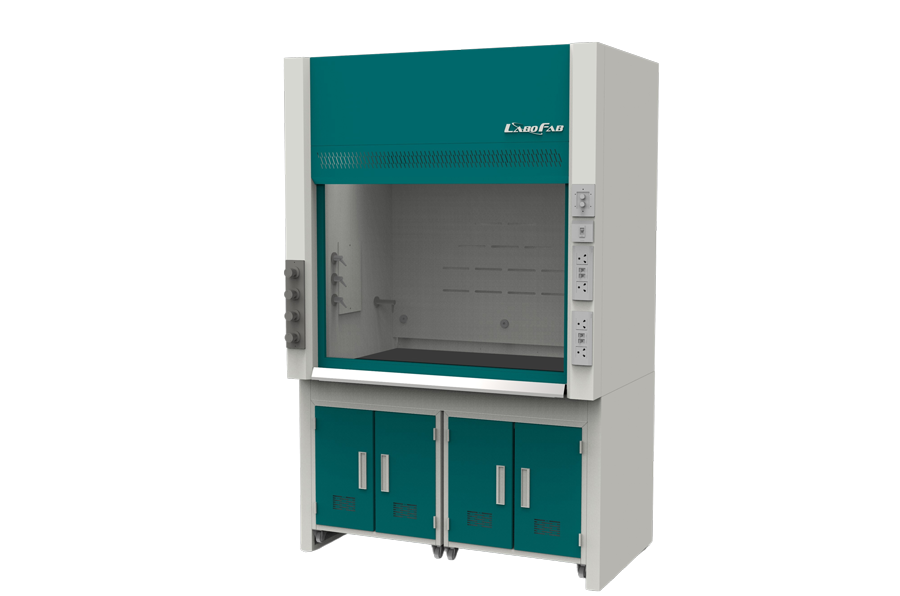

Bench Top Fume Hood

Bench Top Fume Hood

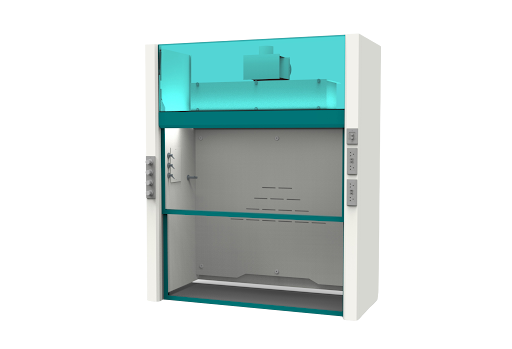

Walk in Fume Hood

Walk in Fume Hood

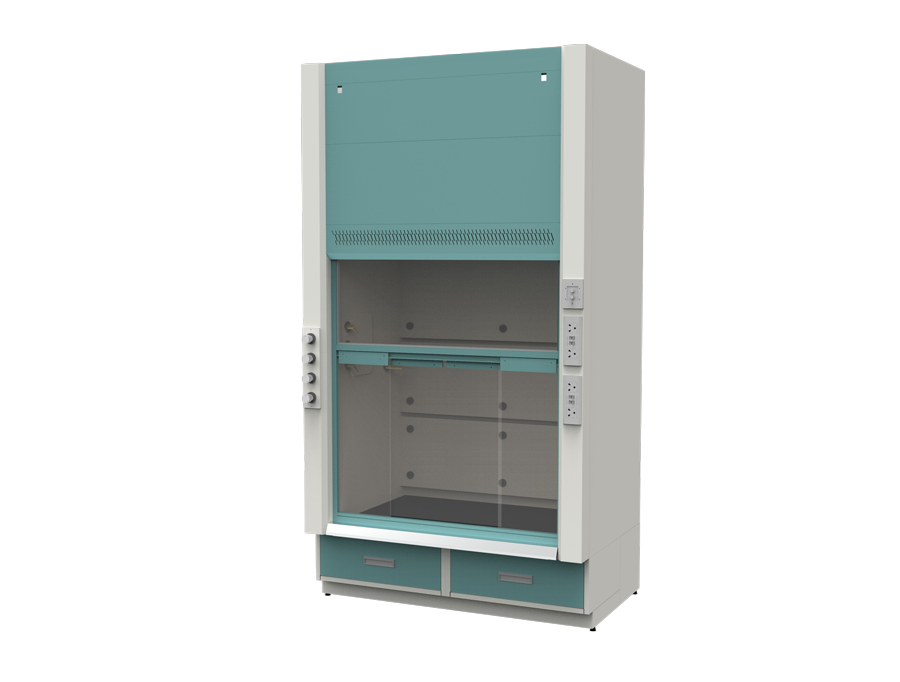

Low Bench Fume Hood

Low Bench Fume Hood

Standard Size

4 feet

1200mm LX 1000mm W x 2350mm H

5 feet

1500mm LX 1000mm W x 2350mm H

6 feet

1800mm LX 1000mm W x 2350mm H

7 feet

2100mm LX 1000mm W x 2350mm H

Technical Specs of Fume Hood

  • Airflow Monitoring and Control

    Airflow monitoring and control options are available with touch-panel or push-button operation, depending on the selected configuration. These features help operators monitor and manage the system during use.

  • Sash Options

    The sash is available in vertical or combined horizontal and vertical sliding configurations. Toughened glass fitted within powder-coated aluminium extrusion supports smooth operation and visibility of the working area.

  • Baffle Arrangement

    The three-point suction baffle arrangement is designed to support uniform removal of contaminated air from the working chamber.

Fume Hood Service Fixtures and Fittings

  • Valves:

    Remote-control valves with IN & OUT facilities and flexible hoses provide convenient operation during laboratory procedures.

    Colour-coded washers and index handles make it easier to identify and control different services from outside the enclosure.

  • Electrical Services:

    Reputed single-phase, 50 Hz electrical receptacles rated at 230 V AC and 6/16 Amp are provided as per the selected laboratory requirements and standard configuration.

  • Base Cabinet and Storage

    The upper unit is mounted on robust base cabinets designed for regular laboratory use. The superstructure is finished with a high-performance powder coating that provides chemical resistance, corrosion resistance, and fire-retardant properties, making it suitable for demanding laboratory environments.

    For laboratories with limited space, Benchtop Fume Hoods provide a compact solution while maintaining efficient laboratory workflow. Solvent, flammable-liquid, and acid storage cabinets can also be supplied on request.

Fume Hood Work Surface

  • The work surface plays an important role in laboratory operations and should be selected according to the chemicals, processes, and application involved. Labofab offers several laboratory work surface options, including:

  • Dished Black Granite<small< span=””></small<>
  • Ceramic
  • Solid Epoxy Resin
  • Phenolic Resin

    • Dished or Raised-Edge Stainless Steel for Radioisotope and Perchloric Acid applications

ENCLOSURE

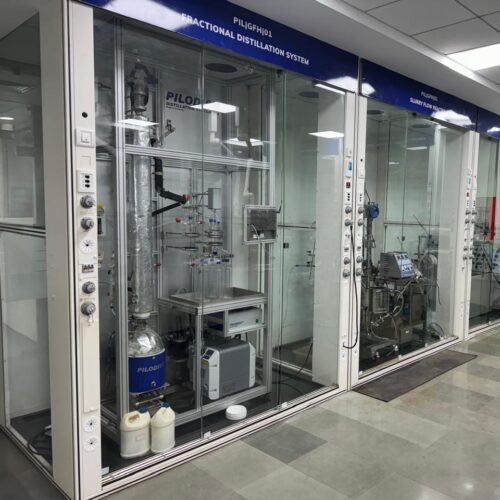

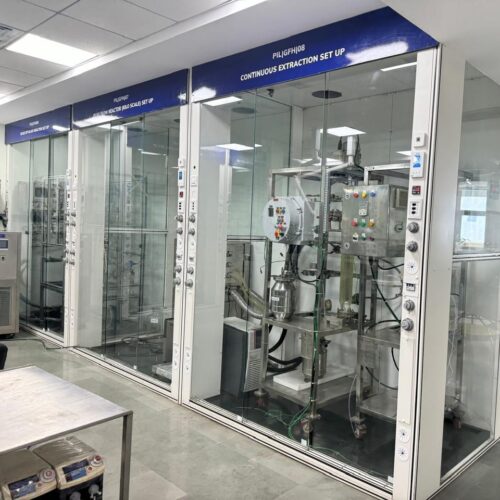

Lab Enclosure
Lab Enclosure

Key Features

Superior Durability

Crafted from high-quality, chemical-resistant materials.

Modular Configurations

Designed for specific needs, Flexible for any lab layout.

Easy Maintenance

Non-porous, smooth surfaces for quick cleaning.

Compliance

Meets ISO and SEFA standards for reliability and safety

Product Specifications

Durable Materials

Stainless steel, epoxy coatings for durability.

Dimensions

Designed for specific needs.

Surface Finish

Smooth, easy-to-clean, scratch-resistant.

Weight Capacity

Supports various lab equipment.

Energy Efficiency

Designed for reduced energy consumption.
fumehoods-labofab

FAQs

What is the use of laboratory fume hood?

A laboratory fume hood is designed to safely vent hazardous fumes, gases, or vapors from a lab environment, ensuring a safe workspace.

How does a laboratory fume hood work?

It works by drawing air into the hood, filtering out contaminants, and exhausting them away from the lab, keeping the air clean and safe.

Why choose fume hoods over others equipment for safety?

As a leading manufacturer & supplier of lab fume hoods, we can say the fume hood is best beacuse it is offer durable, high-quality fume hoods that ensure reliable performance and safety.

How do I maintain a laboratory fume hood?

Routine cleaning, checking airflow, and ensuring the filters are in good condition help maintain your laboratory fume hood for optimal performance.
